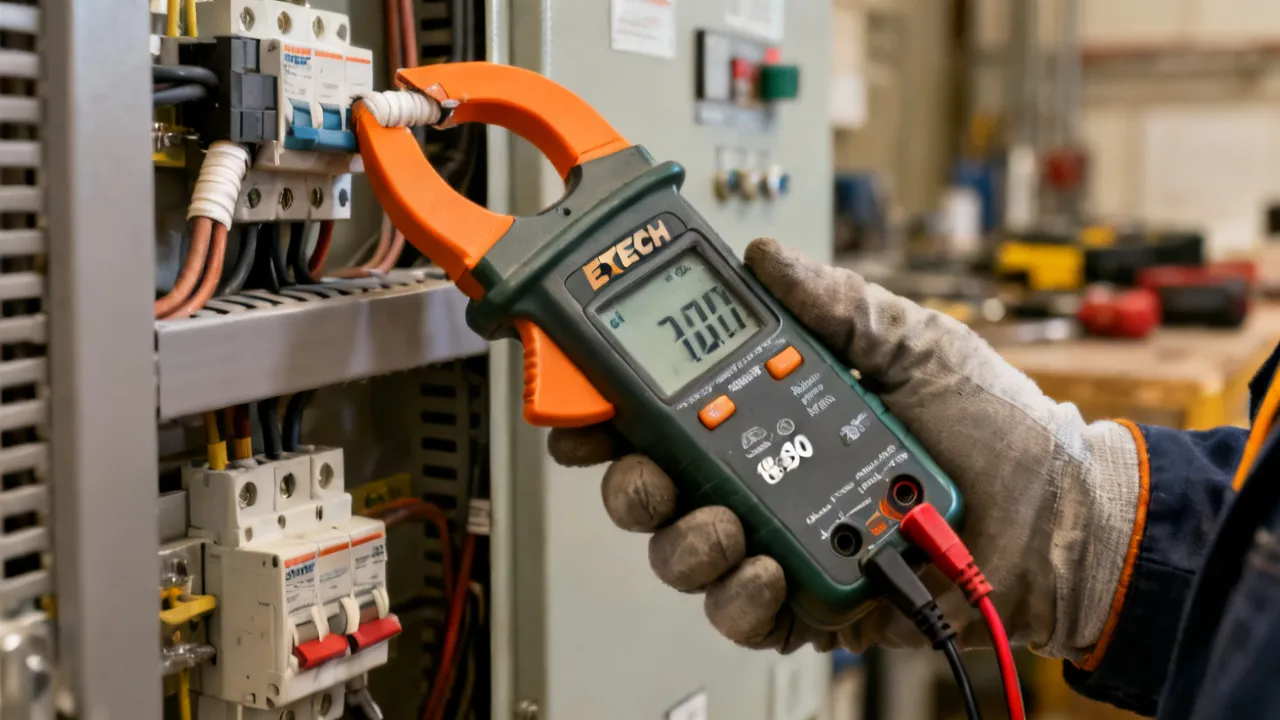

This guide explains how the Extech EX800 series clamp meter is used for current measurement, electrical troubleshooting, maintenance, and field diagnostics. The EX800 family is associated with clamp-style digital multimeters designed to measure electrical values without requiring the test circuit to be opened. Because specifications vary among models in the series, users should confirm the exact model, measurement category, jaw capacity, functions, and safety ratings before purchase or operation.
The Extech EX800 is best understood as a family of clamp meters rather than one single specification. Within the EX800 range, individual models may differ in current capacity, measurement functions, jaw opening, display features, response type, and application focus. That distinction matters when selecting equipment for commercial maintenance, HVAC service, industrial troubleshooting, automotive work, laboratory support, or general electrical inspection.
The principal advantage of an Extech EX800 clamp meter is its ability to measure current by placing the meter’s jaws around a conductor. In many situations, this avoids disconnecting the wire or placing the instrument directly in series with the circuit. The approach can improve workflow and reduce the time required for a basic load survey, but it does not remove electrical hazards. Correct conductor placement, appropriate personal protective equipment, measurement-category awareness, and compliance with local electrical procedures remain essential.
From an industry perspective, the important question is not simply whether an Extech EX800 can measure current. The more useful question is whether a particular EX800 model has the correct combination of range, accuracy, jaw size, measurement category, response type, and auxiliary functions for the task. A meter that is suitable for a small service panel may not be the right choice for large conductors, high-energy distribution equipment, variable-speed drives, or temperature-based maintenance work.
Clamp meters combine the functions of a current transformer or Hall-effect sensor with those of a digital multimeter. When the jaws surround a single current-carrying conductor, the magnetic field generated by that conductor is detected and converted into a measurement shown on the display. This method is especially useful when a circuit cannot conveniently be interrupted or when disconnecting a conductor would create additional hazards.
The Extech EX800 series is associated with professional and advanced general-purpose electrical measurement. The exact capabilities depend on the model designation. Some versions in a clamp-meter family may be optimized for high-current measurement, while others provide expanded multimeter functions, higher resolution, direct-current measurement, or specialized features for maintenance work.
Users should therefore identify the complete model number before interpreting a product listing, manual, or specification sheet. The label “Extech EX800” alone may not establish the instrument’s maximum current, whether it supports direct-current measurement, whether it includes temperature measurement, or whether it is intended for a particular industrial environment.
In practical use, an Extech EX800 can support several stages of electrical work:
These functions can help technicians narrow down a fault, but a clamp meter is not a substitute for a complete diagnostic process. A current reading should be interpreted alongside voltage, load conditions, conductor temperature, equipment specifications, operating state, and recent maintenance history. In many situations, the most useful result is a comparison between phases, similar machines, or measurements taken at different times.
Current flowing through a conductor creates a magnetic field. A clamp meter senses that field without making direct electrical contact with the conductor. For alternating current, the meter detects the changing magnetic field associated with the AC waveform. Models equipped for direct-current measurement use a different sensing arrangement, commonly based on a Hall-effect sensor, and may require zeroing before a reading is taken.
The jaws must surround one conductor only. If the line and neutral conductors of a single-phase circuit are enclosed together, their magnetic fields may largely cancel one another. The result can be a very low or misleading measurement even when the appliance is operating normally. This is one of the most common errors made by inexperienced users.
For a three-phase system, the measurement approach depends on the purpose of the test. Measuring one phase conductor at a time can reveal phase imbalance or unequal loading. Enclosing multiple conductors together is generally not appropriate when the objective is to determine the current in one phase. The wiring arrangement and local safety procedure should always guide the method.
Position also affects measurement quality. The conductor should generally be centered in the jaws, and the jaws should close fully. A conductor touching the jaw edge, an incompletely closed jaw, or nearby conductors carrying significant current can affect the result. These effects may be more noticeable when measuring low current values, especially when the expected current is close to the lower end of the meter’s useful range.
Magnetic interference can also influence a reading. Large transformers, adjacent conductors, motors, and other sources of magnetic fields may affect sensitive measurements. If a value appears inconsistent, move the clamp to a different accessible point, repeat the measurement, confirm the jaw is fully closed, and compare the result with a suitable reference.
The EX800 designation should be treated as a series identifier. A buyer reviewing an Extech EX800 listing should confirm the full product code and compare the official technical documentation for that exact model. Model differences can influence suitability more than the brand or family name.
| Specification Area | Why It Matters | What to Confirm |
|---|---|---|
| AC current range | Determines whether normal and peak load conditions can be measured. | Maximum range, resolution, accuracy, and waveform limitations. |
| DC current capability | Useful for batteries, charging systems, control circuits, and some industrial equipment. | Whether DC current is supported and whether zero adjustment is required. |
| Jaw opening | Controls the largest conductor or cable bundle that can be enclosed. | Physical opening and practical clearance around the conductor. |
| Voltage measurement | Supports verification and comparison during troubleshooting. | AC and DC ranges, input impedance, accuracy, and category rating. |
| True RMS behavior | Can improve measurement of distorted or non-sinusoidal waveforms. | Whether the specific model provides True RMS and its stated operating limits. |
| Frequency and duty cycle | Helpful for control systems, motors, power supplies, and signal analysis. | Available ranges and whether the function works through the clamp or test leads. |
| Temperature function | May support thermal checks on equipment and connections. | Probe compatibility, temperature range, and included accessories. |
| Inrush function | Can help capture brief startup currents from motors, transformers, and compressors. | Availability, capture duration, trigger conditions, and applicable range. |
| Safety category | Relates to the electrical environments in which the instrument is designed to be used. | CAT rating, maximum voltage, fuse protection, and manual instructions. |
This comparison is intended as a purchasing framework, not as a replacement for the manufacturer’s specification sheet. The exact EX800 model should be verified before a purchase is made or the meter is used on energized equipment. A specification that appears in a general online description may apply only to one version of the family.
AC current measurement is the core function associated with many clamp meters. It can be used to evaluate motors, pumps, compressors, heaters, lighting circuits, distribution feeders, and portable equipment. The reading should be taken under a defined operating condition. For example, a motor’s starting behavior, unloaded current, and full-load current may be very different.
When comparing readings, record the equipment state. A pump operating against a closed valve, an HVAC compressor during startup, or a heater switching between cycles may produce results that are not representative of steady-state operation. A single displayed number without context can lead to an incorrect conclusion.
Current measurements can also be used to identify whether a circuit is carrying an expected load. If an appliance is reported to be operating but the clamp meter shows no measurable current, the issue may involve a disconnected supply, a control relay, a failed component, or an incorrect measurement point. Conversely, a higher-than-expected current may indicate overload, mechanical resistance, supply problems, or a normal temporary operating event.
If the specific Extech EX800 model supports DC current measurement, it may be useful for battery systems, charging circuits, solar-related equipment, vehicle electrical systems, and industrial controls. DC clamp readings are sensitive to zero offset and nearby magnetic fields. The user should follow the model’s zeroing instructions before measuring and repeat the zero check if the meter position or environment changes.
Battery and charging measurements also require careful polarity awareness when test leads are used for voltage. Current direction and magnitude can provide useful information, but the reading must be interpreted according to the charging state, battery chemistry, control strategy, and manufacturer specifications.
Low-current DC work can be more demanding than measuring a large load. The resolution and accuracy specification should be reviewed carefully, particularly when measuring standby current, electronic control circuits, or parasitic draw. If the current is below the clamp meter’s practical resolution, an alternative measurement method may be more appropriate.
Voltage measurements can help determine whether a supply is present and whether an observed current is plausible. When using test leads, connect the common lead and measurement lead according to the instrument markings. Select the correct function and range, and avoid touching exposed metal portions of the probes.
Voltage testing on energized circuits presents a significant shock and arc-flash hazard. A professional procedure often includes confirming the meter on a known source, testing the target circuit, and confirming the meter again. This “live-dead-live” approach is commonly incorporated into electrical safety programs, although the exact procedure should follow the employer’s rules and applicable regulations.
A voltage reading should also be evaluated in relation to the expected phase-to-phase or phase-to-neutral arrangement. Measuring between the wrong points can produce a valid-looking number that does not answer the intended question. Before placing probes, identify the circuit diagram, terminal labels, and reference point.
Resistance and continuity functions should be used only on circuits that have been de-energized and isolated. Stored energy in capacitors, power supplies, drives, and other equipment can remain after the main source has been disconnected. The circuit should be verified safe before connecting the meter.
Continuity testing is useful for identifying open conductors, checking switches, tracing fuses, and confirming low-resistance paths. It is not a complete proof that a conductor can carry its intended load. A connection may show continuity while still having excessive resistance under operating current.
When measuring resistance in a component, parallel paths can produce a reading lower than the component’s actual resistance. Disconnecting one side of the component or following the equipment manufacturer’s test procedure may be necessary. A continuity beep is also not a substitute for measuring the actual resistance where resistance is diagnostically important.
Frequency measurement can assist with checking supply characteristics, generator output, motor-control signals, or other periodic electrical signals. The meter’s frequency range and input method should be checked for the exact EX800 model. Variable-frequency-drive outputs can be complex and may require an instrument specifically suited to the waveform and voltage environment.
Frequency readings should not be interpreted without considering the point at which the measurement is made. The frequency at a utility supply, the output of a drive, and the signal at a low-voltage control terminal may require different measurement techniques and safety precautions.
Some multimeter-oriented clamp meters include capacitance or diode-test functions. These can be useful during component-level troubleshooting, but components should be isolated from parallel circuitry where necessary. Capacitors must be discharged using an approved method, and a meter reading alone should not be treated as a complete assessment of component health.
Capacitance measurements can be affected by residual charge, connected components, temperature, and the tolerance of the part. Diode measurements can likewise be affected by parallel semiconductor paths or control circuitry. These functions are most useful when the technician understands the circuit and uses the meter as one part of the diagnostic process.
If the particular model supports temperature measurement, a compatible probe can help identify unusual heating at terminals, motors, bearings, heat exchangers, or control components. Contact temperature readings are influenced by probe placement, surface condition, airflow, and thermal mass. They should not be confused with infrared imaging, which uses a different measurement method.
A temperature reading can complement a current reading. For example, a loose terminal may produce localized heating even when total circuit current appears normal. A motor drawing a normal current may still exhibit excessive bearing temperature. Temperature trends should be recorded consistently, using the same measurement location and comparable operating conditions.
Modern electrical equipment often includes switching power supplies, rectifiers, inverters, variable-speed drives, LED drivers, and electronic controls. Such devices may draw current in pulses rather than as a smooth sine wave. A meter designed to calculate the root-mean-square value of complex waveforms can provide a more meaningful result than an average-responding meter, provided the signal remains within the instrument’s specified bandwidth and crest-factor limits.
Not every model in a product family has identical waveform performance. The buyer should confirm whether the selected Extech EX800 model is True RMS and review the conditions attached to that claim. True RMS capability does not automatically guarantee accurate readings on every waveform. The instrument’s frequency range, crest-factor limit, current range, and input characteristics still matter.
For maintenance work, the reliable practice is to compare the reading with equipment documentation and, where appropriate, with a known-good instrument. Unexpected values should be investigated rather than accepted solely because they appear stable on the display. If a nonlinear load is suspected, record the equipment type and operating mode because those details may explain differences between instruments.
Measurement category ratings describe the types of electrical environments for which an instrument is designed. Categories commonly identified as CAT II, CAT III, and CAT IV relate to progressively more demanding locations within an installation. The rating should be considered alongside the maximum voltage and the complete measurement setup, including leads, probes, adapters, and accessories.
An Extech EX800 should be used only within the safety limits stated for the exact model. A high current range does not necessarily mean the meter is appropriate for every high-energy installation. Similarly, a durable enclosure does not replace correct protective equipment or an established safe-work procedure.
Before measuring energized equipment, a trained user should consider:
Only qualified personnel should perform hazardous electrical measurements. If the equipment condition is uncertain, the circuit should be isolated and assessed under the applicable workplace and electrical safety rules. The clamp feature reduces the need to break into a circuit, but it does not make the measurement intrinsically safe.
Read the model marking on the instrument and compare it with the corresponding manual. Confirm the available functions, current range, jaw capacity, category rating, battery type, fuse arrangement, and operating limitations. Do not rely only on a similar-looking product photograph.
Check the housing for cracks, inspect the clamp jaws for damage or contamination, and examine the test leads for cuts, exposed conductors, loose plugs, or damaged insulation. Confirm that the display, rotary selector, buttons, and jaw-release mechanism operate correctly.
Decide whether the task requires clamp current measurement, test-lead voltage measurement, resistance, continuity, frequency, or another function. If the measurement can be made on a de-energized circuit, that is generally preferable to working on energized equipment.
Set the selector to the appropriate current, voltage, or auxiliary function. If the meter is not autoranging, choose a range that safely accommodates the expected value. When uncertain, begin with a higher range and move downward only when conditions permit.
Open the jaws and place them around one conductor. Do not clamp around an entire multi-conductor cable when the goal is to measure the current in a single conductor. Close the jaws completely and center the conductor where practical.
Allow the display to stabilize while watching for overload indications, unstable values, or unexpected symbols. Record the operating condition, including whether the equipment was starting, idling, loaded, heating, cooling, or cycling.
Compare the result with the equipment nameplate, design documentation, previous maintenance records, or readings from comparable phases. Do not diagnose a fault from current alone. A low reading can indicate reduced load, an open phase, a mechanical issue, or an instrument setup error. A high reading can reflect overload, voltage conditions, mechanical resistance, harmonics, or a normal starting event.
After completing the measurement, open the jaws and remove the instrument without contacting exposed conductors. Return the selector to a suitable standby position according to workplace procedure, disconnect the leads if used, and document any abnormal condition.
This is the familiar clamp-meter mistake. Opposing currents may cancel, producing a reading that is much lower than expected. Separate the conductor where the installation design and safety conditions allow it, or use an approved adapter designed for the task.
Current, voltage, resistance, and continuity functions are not interchangeable. Selecting the wrong mode can produce a misleading result or create a hazardous condition. Always check the selector and display before contacting the circuit.
Motors, transformers, compressors, and capacitive loads may draw a brief starting current that is much higher than their running current. If the EX800 model includes an appropriate inrush function, follow the manual’s procedure. Otherwise, a standard display reading may not capture the event accurately.
Forcing a large cable into a small jaw can damage the mechanism and lead to poor magnetic coupling. Confirm the physical opening before beginning the job. Do not assume that a high electrical range guarantees a large jaw opening.
DC clamp meters may show an offset caused by the sensor, nearby magnetic fields, or the previous measurement position. Zero the meter according to the manual, especially before low-current measurements.
Electrical systems change with load, temperature, control state, and time. Take repeat measurements under comparable conditions. A pattern across phases or over several operating cycles is usually more informative than one isolated value.
Resistance and continuity functions require a de-energized circuit. Applying external voltage can damage the meter and place the user at risk. Isolate the circuit, discharge stored energy, and verify the absence of hazardous voltage before proceeding.
A clamp meter normally displays current, not complete electrical power. Power depends on voltage, current, power factor, phase relationship, and waveform. Two loads drawing the same current may consume different amounts of real power. If power quality or energy use is the concern, a suitable power analyzer or additional measurements may be required.
An Extech EX800 can help compare phase currents, identify load changes, and monitor operating conditions. If one phase differs substantially from the others, possible causes include supply imbalance, connection problems, winding issues, or unequal mechanical loading. The clamp reading should be combined with voltage measurements and manufacturer data before a conclusion is made.
Current imbalance can create additional heating in a motor even when the average current appears acceptable. A technician should document all phases, the motor’s operating load, supply voltage, ambient temperature, and any mechanical symptoms. If readings change as the pump or fan reaches operating temperature, that change may be diagnostically important.
Technicians may use a clamp meter to examine compressor current, fan motors, heaters, and auxiliary circuits. The useful results come from documenting the equipment mode and environmental conditions. A compressor during startup, defrost, or a stabilized cooling cycle should not be evaluated using the same expectation.
For HVAC systems, current may also be influenced by refrigerant conditions, airflow restriction, outdoor temperature, condenser cleanliness, and control settings. A reading outside the expected range should prompt a broader inspection rather than an immediate component replacement.
Current measurements at a panel can support load surveys and phase-balance checks. Work inside panels can involve exposed energized parts and significant arc-flash risk. Only authorized and qualified personnel should perform such measurements using the required protective controls.
Panel measurements should be documented by circuit identification. A current value without the circuit name, phase, time, and operating state has limited long-term value. For load studies, measurements taken at multiple times may reveal demand patterns that are not visible during a short visit.
Clamp measurements can assist with comparing load across phases and observing how equipment responds when transferred to backup power. Generator frequency, voltage regulation, load characteristics, and nonlinear equipment behavior should also be considered.
Large changes in current during transfer may reflect motor starting, transformer energization, battery chargers, or electronic power supplies. A generator may be within its average load rating while still experiencing problematic transient behavior. The EX800 can provide useful current information, but transient analysis may require specialized equipment.
Where the model supports DC current, it may help evaluate parasitic draw, charging behavior, or accessory load. Low-current automotive measurements can be affected by sensor resolution and surrounding magnetic fields. The exact vehicle state should be recorded, including ignition status, sleep mode, charging mode, and connected accessories.
Vehicle systems may enter and leave sleep states over several minutes. A current reading taken immediately after switching off the ignition may not represent normal standby consumption. Technicians should follow the vehicle manufacturer’s procedures and avoid disturbing the system while waiting for control modules to shut down.
Control cabinets often contain variable-frequency drives, switching supplies, relays, and programmable equipment. These systems may produce waveforms that require careful instrument selection. Confirm that the meter’s specifications are suitable for the signal and electrical category before testing.
When troubleshooting controls, it is often useful to separate the question of supply voltage from the question of load current. A control device may have correct input voltage but fail to energize an output, or it may energize an output that is carrying an abnormal load. The EX800 can contribute to both parts of the investigation when used within its ratings.
Accuracy describes how close a measurement is expected to be to the actual value under specified conditions. Resolution describes the smallest displayed increment. A meter can show several decimal places without providing equivalent measurement accuracy. For this reason, the last displayed digit should not automatically be treated as significant.
Environmental conditions can affect readings. Temperature, humidity, electromagnetic interference, battery condition, conductor position, and waveform shape may all influence performance. The manufacturer’s accuracy tables normally apply only within defined temperature and frequency ranges.
When a measurement is important, use a repeatable method:
For regulated facilities, laboratories, and quality-sensitive production environments, calibration should be handled through a competent service provider using traceable procedures appropriate to the organization’s requirements. The certificate and stated uncertainty should be reviewed rather than treating calibration as a simple pass-or-fail label.
Field verification can also be useful between formal calibration intervals. A technician may compare the meter with a trusted reference on a suitable source, provided the reference and procedure are appropriate. This does not replace calibration, but it can identify obvious changes in performance before the next scheduled service.
Keep the Extech EX800 clean and dry within the environmental limits specified by the manufacturer. Dirt on the jaw surfaces can prevent complete closure. Avoid solvents or cleaning methods that may damage plastics, labels, insulation, or seals. A soft cloth and an approved cleaning procedure are generally preferable.
Store the instrument in a protective case or location where the jaws, display, selector, and test leads will not be crushed. Remove the battery if the instrument will be stored for an extended period and the manual recommends doing so. Batteries should be replaced with the specified type and installed with correct polarity.
Test leads deserve particular attention. They are exposed to handling, bending, abrasion, and contamination. Replace damaged leads rather than attempting an improvised repair. Fuses, where fitted, should be replaced only with the correct type and rating. A fuse with a higher rating can compromise the meter’s protection.
Do not use the clamp jaws as a lever, gripping tool, or means of moving a conductor. Mechanical stress can affect alignment and closure. After use around dusty or oily equipment, inspect the jaw hinge and contact surfaces before returning the instrument to storage.
Start with the electrical environment, not the feature list. A residential technician may prioritize a compact body, clear display, and practical AC current range. An industrial maintenance team may need a higher category rating, robust construction, waveform capability, inrush measurement, and a larger jaw. An HVAC technician may value temperature support and motor-current diagnostics. A vehicle technician may focus on DC current sensitivity and low-current resolution.
Use the following selection questions:
Price should be considered together with the total cost of ownership. Replacement leads, batteries, calibration, protective accessories, training, and downtime can influence the practical value of a meter. A lower purchase price is not necessarily economical if the instrument lacks a critical function or cannot be used safely in the intended environment.
When purchasing an Extech EX800, confirm that the supplier identifies the exact model and provides current documentation. Product listings sometimes combine images or descriptions from related models. The buyer should compare the model marking, technical specifications, included accessories, warranty terms, and return conditions.
Check whether the instrument is new, previously used, refurbished, or supplied as demonstration stock. Ask whether calibration documentation is included and whether the stated condition applies to the meter, leads, case, and accessories. For professional use, retain the invoice, serial number, manual, and calibration records.
Online specifications should be checked against the manufacturer’s official product page and user manual. If two sources disagree, the manual and current manufacturer documentation should receive priority. A qualified distributor or manufacturer support representative can help resolve model-specific questions.
Before accepting a used meter, inspect the jaw alignment, selector operation, display segments, battery compartment, test-lead sockets, and protective insulation. A meter may appear functional while having compromised internal protection or damaged accessories. Used equipment should be evaluated according to the risk of the intended application.
The following conditions should be satisfied before using an Extech EX800 on an electrical system:
If any of these conditions cannot be met, postpone the measurement or use a safer method. Electrical measurement should be controlled, deliberate, and supported by the relevant workplace procedure. Convenience is not a sufficient reason to bypass isolation, protective equipment, or equipment-specific requirements.
An experienced technician rarely treats a clamp-meter value as an isolated answer. The reading is evidence within a broader diagnostic chain. For example, elevated motor current may be associated with mechanical friction, excessive process load, low voltage, phase imbalance, bearing deterioration, or a control issue. The meter can identify a symptom, but further tests are needed to determine the cause.
Likewise, a low current reading is not always positive. It may indicate that a load is operating efficiently, but it could also show that a heater is open, a compressor is not starting, a phase is missing, or the equipment is not actually in the expected operating state.
Trend data is often more useful than a single measurement. Recording current at regular maintenance intervals can reveal gradual changes. However, trend comparisons are meaningful only when the same measurement point, equipment state, instrument method, and environmental conditions are used. Documentation should include date, equipment identification, operating mode, phase or conductor, measured value, and any relevant observations.
A practical maintenance record may also include the meter model and serial number, the technician’s name, ambient conditions, equipment load, supply voltage, and whether the reading was steady or fluctuating. This information helps another technician reproduce the measurement and determine whether a future change is meaningful.
For general electrical measurement practice, users may consult the Extech product manual, the manufacturer’s safety documentation, and applicable national or regional electrical safety requirements. International standards such as IEC 61010-1 address safety requirements for electrical measurement, control, and laboratory equipment, while IEC 61010-2-032 addresses hand-held and hand-manipulated current sensors. The exact applicability depends on the instrument and jurisdiction.
Workplace electrical safety programs may also reference standards and guidance from organizations such as the National Fire Protection Association, the International Electrotechnical Commission, national standards bodies, or local regulators. These resources should be used alongside employer procedures rather than as a substitute for formal training.
Where technical decisions affect personnel safety, equipment certification, or regulatory compliance, the current edition of the applicable standard should be consulted. Requirements can vary by country, industry, installation type, and employer policy.
The Extech EX800 is a designation used for a series of clamp-style digital multimeters. The meters are designed primarily to measure electrical current through a conductor without requiring the conductor to be disconnected. Different models within the series may have different functions and ratings, so the complete model number should be confirmed.
It can measure current through the magnetic field around a conductor when the conductor is enclosed by the clamp jaws. This is often described as non-contact current measurement because the electrical conductor does not need to touch the meter. The jaws still need to be positioned safely around the conductor, and the measurement remains subject to electrical hazards.
Usually, enclosing multiple conductors together is unsuitable when measuring the current in one circuit because the magnetic fields may cancel. The correct method is generally to clamp around one current-carrying conductor. The installation must permit this to be done safely and without damaging insulation or disturbing connections.
No. The EX800 name refers to a product family, and individual models can differ. Confirm current type, maximum range, accuracy, jaw opening, True RMS capability, auxiliary functions, safety category, and included accessories for the exact model.
Suitability depends on the specific model and the panel’s electrical category, voltage, current, available fault energy, physical access, and workplace controls. A meter should be used in an industrial panel only when its ratings and accessories are appropriate and the user is qualified to perform the measurement.
Some clamp-meter models provide an inrush function, but availability and performance vary. Check the exact EX800 manual. Motor starting measurements also depend on the duration of the event, the instrument’s response characteristics, and the safety conditions at the equipment.
Possible explanations include clamping around both line and neutral, measuring the wrong conductor, an open or lightly loaded circuit, incorrect mode selection, poor jaw closure, a low-current signal below the meter’s practical resolution, or a genuine equipment condition. Repeat the setup carefully and compare the result with the operating state.
No. Resistance and continuity functions should be used only on isolated, de-energized circuits after stored energy has been safely discharged. Applying external voltage can damage the meter and create a dangerous condition.
No. True RMS capability can improve the interpretation of certain AC waveforms, but accuracy still depends on frequency, crest factor, range, conductor position, temperature, and the model’s specified limits. The full technical documentation should be reviewed for nonlinear loads.
The appropriate interval depends on usage, organizational policy, environmental exposure, required accuracy, and risk. Follow the manufacturer’s recommendations and the organization’s quality system. High-consequence measurements may require more frequent verification than occasional general maintenance checks.
Confirm the exact model, current type and range, jaw opening, voltage rating, measurement category, True RMS status, inrush capability, auxiliary functions, included leads, warranty, documentation, and calibration options. The intended application should determine which features are essential.
The reliable references are the manufacturer’s current product documentation, the exact user manual, and information supplied by an authorized or technically established distributor. If a marketplace listing conflicts with the manual, seek clarification before relying on the listing.
A current reading alone does not provide a complete energy-consumption measurement. Energy depends on voltage, time, power factor, waveform, and the nature of the load. Current data can contribute to an estimate when those other variables are known, but a dedicated power or energy meter is more appropriate for billing, efficiency studies, or formal energy reporting.
Check the function, range, battery condition, jaw closure, conductor position, and proximity of other energized conductors. Confirm whether the load itself is cycling or controlled electronically. If instability remains, compare the reading with another suitable instrument and consult the manual before drawing a conclusion.
The Extech EX800 series can be a practical solution for technicians who need current measurement combined with selected multimeter functions. Its clamp format supports efficient assessment of motors, HVAC equipment, distribution circuits, generators, battery systems, and industrial controls. The value of the instrument, however, depends on matching the exact model to the application.
Before operating an Extech EX800, confirm the model-specific specifications, inspect the meter and leads, select the correct function, clamp around one conductor, and interpret readings in their operating context. For energized work, safety category, voltage limits, protective equipment, and qualified procedures are more important than convenience. Used with that discipline, the EX800 can provide useful information for systematic electrical troubleshooting, preventive maintenance, load documentation, and informed equipment decisions.
